Features

Used to stir pulp cyclically in square chest to maintain the pulp liquid in suspending condition, which ensures the pulp components even distribution, and it is good for fully reaction of chemical liquid.
Mainly used to stir pulp cyclically in chest to maintain the pulp liquid in suspending condition, which ensure the pulp components even distribution.

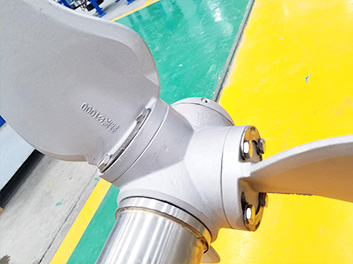

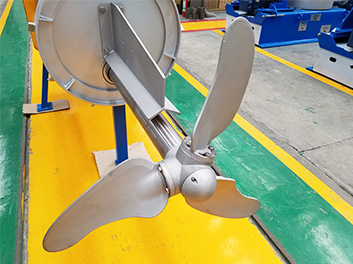

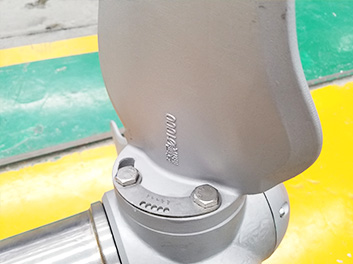

Advanced blade design, strong thrust. It can be adjusted the angle according to the concentration of the slurry.

Technical Data

Model	JB500	JB600	JB700	JB750	JB800	JB850
Vane Diameter(mm)	ɸ500	ɸ600	ɸ700	ɸ750	ɸ800	ɸ850
Consistency(%)	≦5
Chest Volume(m3)	20-50	30-60	35-70	40-75	45-80	50-85
Motor Power(kw)	5.5/7.5	5.5/7.5/11	7.5/11/15	7.5/11/15	11/15	11/15/18.5

Model	JB1000	JB1150	JB1250	JB1300	JB1600	JB2000
Vane Diameter(mm)	ɸ1000	ɸ1150	ɸ1250	ɸ1300	ɸ1600	ɸ2000
Consistency(%)	≦5
Chest Volume(m3)	70-110	80-120	90-140	100-150	120-180	150-230
Motor Power(kw)	15/18.5/22/30	18.5/22/30	22/30/37	30/37/45	37/45/75/90	90/110
